Product Introduction
The elastic modulus of porous stainless steel implants is very similar to that of bone. Using mechanically alloyed 18Cr-8Mn-0.9N powders, powder metallurgical Cr-Mn-N stainless steel foams were created through 20 hours of sintering at 1,100°C [96]. Porous stainless steels outperform 316L samples in terms of anti-friction properties, as demonstrated by a dry friction study and microstructural observation of the material's pore structures.

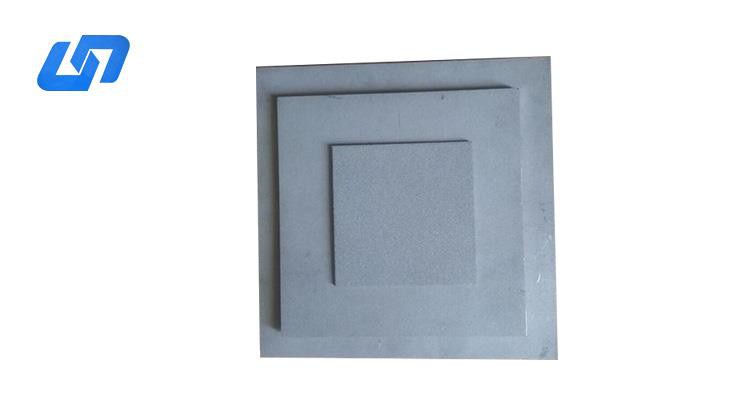

Porous Stainless Steel Filter Plate are made of stainless steel powder and sintered in a vacuum furnace at high temperatures.
Stainless Steel Filter Plate are widely used in sewage treatment. The principle of its working process is the physical filtration of solid particles in the sewage by the sintered filter plate. The filter plate is made of sintered stainless steel powder, and its pore size is uniform and can reach 0.2-100 microns. When the sewage passes through the filter plate, the granular impurities are intercepted by the filter plate, and the filtered sewage is discharged from the other side to achieve the purpose of sewage treatment.
Specification
Material :Stainless steel 316L
Size:T1*W200*L400mm
MOQ:10pcs
Filtration:10microns
Pore size: 30microns
Filter accuracy | Porosity | Penetrability | Compression strength | Temperature toleration | Max. working pressure |
0.5-70um | 20-40% | 3-1300m³/m²hkpa | 3Mpa | 500℃ | 0.6Mpa |
Feature
1. Good corrosion resistance: Porous filter plate has good corrosion resistance and can resist the corrosion of various acid and alkali media.
3. Easy to shape: porous stainless steel can be processed into any shape required by the user.
4. Low temperature resistance: Porous filter plate has good low temperature resistance, and can work normally under -200℃.
5. Easy to clean: Porous filter plate is easy to clean, and can be cleaned and reused multiple times.
