Titanium Twist Tubular Heat Exchanger

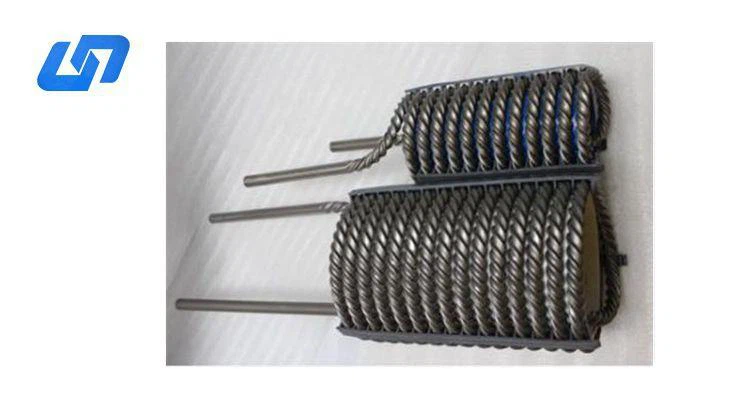

Titanium twist tubular heat exchangers are commonly used for heating and cooling inside vessels. Its working principle is the equal energy transfer between the refrigerant in the titanium tube and the liquid in the plastic shell. The titanium twist tube heat exchanger is a new type of shell-and-tube heat exchanger, which has good heat transfer, anti-fouling, and self-compensation capabilities. The core part uses a titanium spiral corrugated tube, which is processed by a special rolling process. The corrugated heat exchange tube has double-sided annular spiral grooves, and the resulting convoluted tube increases the heat transfer surface area per unit length, but still allows water and cooling. The agent flows fully around its entire periphery to improve performance, which is more than 2 times (1.3-2.6 times) that of ordinary titanium tubes. The turbulence created by the swirls on the water and refrigerant flow further improve thermal performance. At the same time, the accumulation of surface deposits is inhibited. The end result is an efficient, compact heat exchanger with excellent anti-fouling properties.

Description

• inside is made up of titanium tube which has strong anti-corrosion, the water pressure is about 3.5Mpa

• outside is made up of a PVC shell whose temperature is within 45°C and the water pressure is about 0.4Mpa

• this product is used for swimming pools, fish pool aquariums, and so on.

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                       Featu                                                                                                                                                                                                                                                                                          re

• Titanium tubing heat exchanger used by processing, refrigeration effect, and applies to a wide range

• Titanium has strong corrosion resistance, corrosion in seawater in the basic zero, not easy to have a surface oxide layer, not pollute the media, and environmental protection without drugs.

• Scope of application: all kinds of seafood for dependent values, the water heat exchanger, heat exchanger, such as saline.

Application

Food industry: Juices, beverages, sauces, dairy, desserts, fruit puree, whole fruit, catering, convenient food, pasteurization, Seafood aquaculture.

Industry: Chemical, petrochemical, polymers, heating, cooling, condensation, crystallization, evaporation, energy recovery.

Environmental: Wastewater, environmental waste concentration, evaporation, sludge, pasteurization.

Bio-energy: Bioethanol, biodiesel, biogas, cogeneration

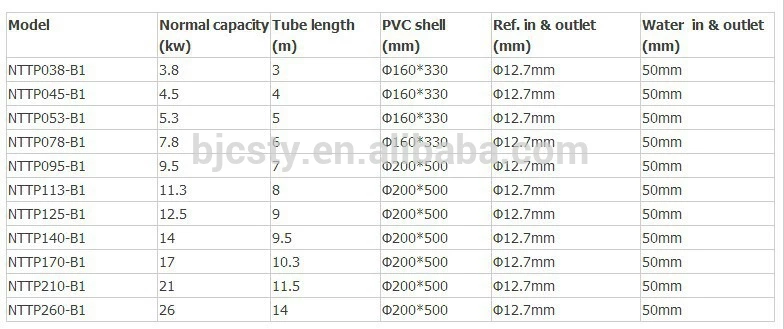

You can offer drawings, or as per your request, we design drawings for you, followed by a drawing for reference.

Quantity control

1. High air tightness: Fine air tightness without refrigerant leakage after professional welding.

2. Patented welding technology: Used a new patented welding technology to combine titanium and copper.

3. Multi-level design: titanium twist tubular heat exchanger has simple structures, but we can design it to be single-layer or multi-layer according to the container type.
