Titanium Pool Heat Exchanger

This pool heat titanium exchanger are constructed with a titanium shell and titanium corrugated inner tubes to ensure high velocities inside the unit. The pool heater titanium heat exchanger has a very reliable and effective way to transfer heat indirectly between any boiler and pool circuit. The design ensures high velocities inside the heat exchanger maximizing heat transfer.

It has more advantages:

1. It has high-efficiency heat transfer capabilities and a high-efficiency coefficient of up to 10000 w/m2 deg C - Heat exchanging capacity 3-7 times traditional equipment.

2. Smooth tube and shell design ensure compact configuration and occupy a small area, one-tenth as the traditional equipment.

3. Stainless steel and/or titanium, material, endure high temperature, pressure, and minimal corrosion. Ideal for solar applications for pools, hot tubs, hydronic heating, and snow melt applications.

4. It meets ASME standard VIII-1.Helix screw thread elasticity heat exchange bundle, eliminate the stress.

5. Big flow volume with minimal pressure drop.Easy installation and durable

Product Specifications

Feature: titanium shell and tubes

Materials Grade: Gr1/Gr2 titanium

Standards: Shell- ASTM B265; Tubes- ASTM B338

Dimension: shell -OD70-160mm*L ,tube-OD9.525*WT*L OD12.7*WT*L (Seamless tube or welded tube)

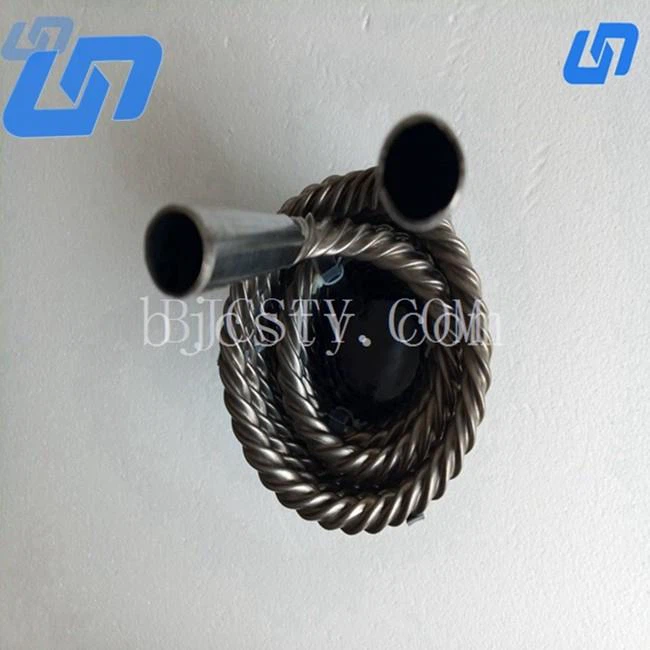

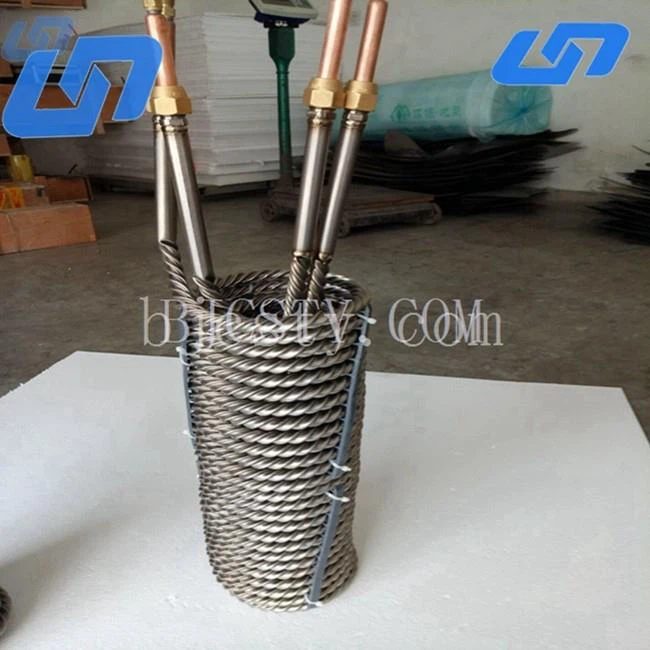

Chemical Composition of titanium tube coils

Mechanical Properties of titanium tube coils

Features:

1.Titanium Corrugated Tube: Titanium tube heat exchangers are manufactured using 99.8% purity titanium and are suitable for handling and cooling low cidic liquids. It has the characteristics of strong corrosion resistance, good heat resistance, high conductivity, non-toxic, non-scaling, non-clogging, will not pollute the medium, the surface is not easy to form oxides.
2. Gas tightness: After a professional welding, with good air tightness, will not leak refrigerant.
3. Patented welding technology: The titanium and copper are safely welded using a new patented welding technique.
4. Multi-level structure: Coil heat exchanger has a simple structure, but also according to the type of container designed to single or multi-layer.

Application of pool heater titanium heat exchangers

It made of titanium are commonly used in various pool heating applications. Here are some of the applications where they are used:

1. 1. Residential Pools: It is used in residential pools to transfer heat from a primary heating source such as a boiler, solar panels, or a heat pump to the pool water. They are particularly useful in areas with hard water or high chlorine levels, which can cause corrosion in other types of heat exchangers.

2. 2. Commercial Pools: Commercial pools, such as those found in hotels, resorts, and recreation centers, often require larger pool heat exchangers to transfer heat efficiently. It is a popular choice for these applications due to their high efficiency and durability.

3. 3. Spas and Hot Tubs: It made of titanium are also used in spas and hot tubs to transfer heat from a primary heating source to the water.

4. 4. Aquaculture: Titanium pools heater is used in aquaculture applications to maintain the water temperature in fish tanks and other aquatic environments.

5. 5. Industrial Applications: Titanium pool heaters are also used in various industrial applications, such as in chemical processing plants, where they are used to transfer heat between two corrosive fluids.

Overall, it is a reliable and efficient solution for a wide range of pool heating applications, including residential and commercial pools, spas, hot tubs, and aquaculture.
