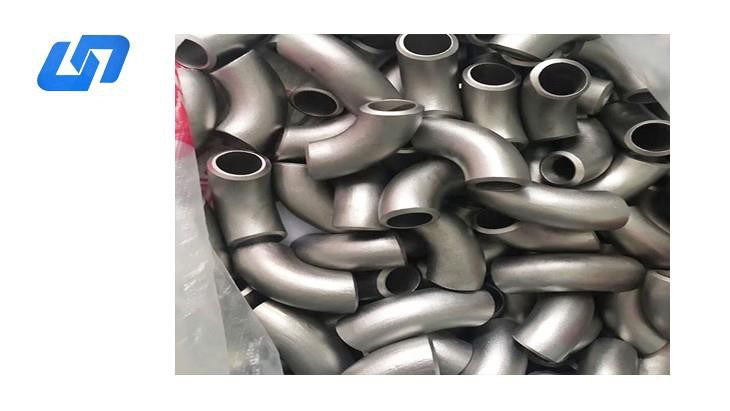

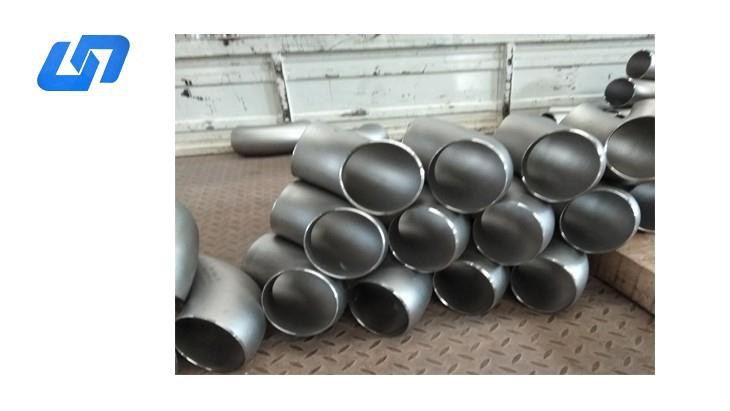

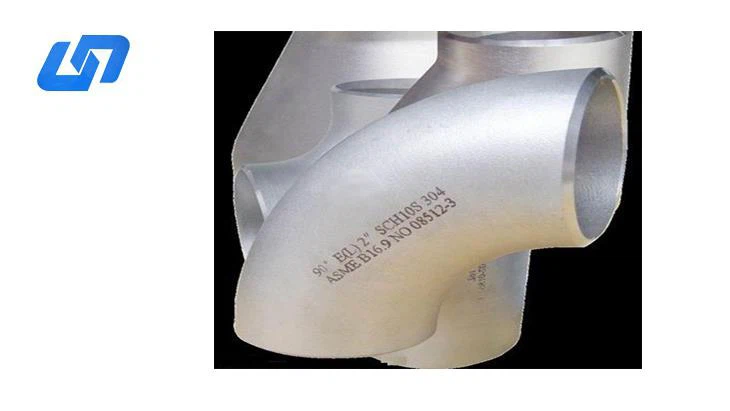

Titanium Elbow In Pipe Fitting

Titanium elbow fittings are used to change the direction of fluid flow in pipeline systems. They are widely applied in industries requiring excellent corrosion resistance, high strength, and long service life.

Available in seamless and welded types, titanium elbows can be manufactured in multiple angles and bending radii to meet different engineering requirements.

Specifications

Size Range

Seamless Elbows

• Φ18 – Φ114.3 mm

• Wall Thickness: 2.0 – 9.0 mm

Welded Elbows

• Φ139.7 – Φ1220 mm

• Wall Thickness: 2.0 – 30 mm

Available Angles & Radius

30° Elbows

• 1.5D / 3D / 5D Radius

45° Elbows

• 1.5D / 3D / 5D Radius

60° Elbows

• 1.5D / 3D / 5D Radius

90° Elbows

• 1.0D / 1.5D / 3D / 5D Radius

180° Elbows

• 1.0D / 1.5D / 3D / 5D Radius

Material Grades

Titanium

Gr1/ Gr2/ Gr3/ Gr5/ Gr7/ Gr12

Nickel Materials

N4N5N6

Zirconium

Zr

Standards

ASME B16.9-2007

ASTM B363

Manufacturing Process

Seamless Extrusion

Butt Welded

Precision Forming & Machining

Surface Finish

Sand Blasting

Polishing

Pickling

Quality Control

Strict inspection procedures ensure reliable performance and safety:

100% X-Ray Detection (RT)

100% Surface Penetrant Inspection (PT)

Dimensional Inspection

Material Verification

Features

1. Excellent corrosion resistance

2. High mechanical strength

3. Long service life

4. Suitable for high-pressure systems

5. Stable performance in harsh chemical environments

6. Lightweight compared with stainless steel

Applications

Titanium elbow fittings are widely used in:

1. Oil & gas industry

2. Petrochemical plants

3. Chemical processing systems

4. Offshore engineering

5. Power generation

6. Shipbuilding

7. Pharmaceutical industry

8. Nuclear industry

9. Water treatment systems

10. Marine pipeline systems

Customization

Special sizes, materials, standards, and drawings can be customized according to customer requirements.
