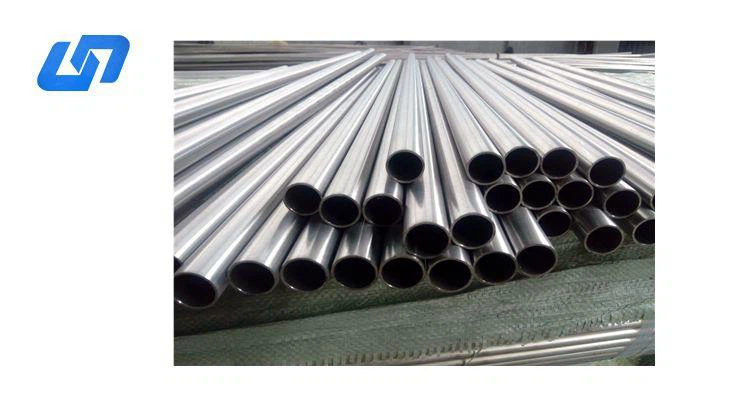

Mo1 Molybdenum Tube
Material: Pure Molybdenum
Density: 9.2~10.2g/cc
Grade: Mo1,Mo2
Standard: ASTM B387
Application:aerospace, semiconductor, furnace components, nuclear, and medical applications
Product Introduction
Molybdenum tube are used in various applications that require high-temperature resistance, corrosion resistance, and excellent mechanical properties.Mo1 Molybdenum Tube is pure molybdenum tube grade that is commonly used in the production of molybdenum tubing.
Specifications:
Material: Mo >99.95%
Density: 9.2~10.2g/cc
Grade: Mo1,Mo2,Mo3,TZM
Standard: ASTM B387
Surface Treatment: Annealed State, Electrolytic Polish
Characteristic: Certificate: ISO9001:2008
Product Feature:
High melting point, high strength, Melting Point: 2610 °C, Boiling Point:5560 °C
Outstanding thermal conductivity,
Excellent resistance to oxidation at high temperatures,
Excellent resistance to electrochemical corrosion
long service life.
Dimensions and tolerance(According to clients' requirements):
| Density | Outer Diameters | Length | Wall Thickness | |
Forged Molybdenum Tube/Pipe | ≥9.9g/cm3 | 4-150mm | ≤800mm | ≥1.0mm |
Sintered Molybdenum Tube/Pipe | ≥9.7g/cm3 | 100-500mm | ≤800mm | ≥5.0mm |
Composition:
Grade | The impurity content is not more than % | |||||||
Fe | Ni | Al | Si | Mg | C | N | O | |
Mo-1 | 0.01 | 0.005 | 0.002 | 0.01 | 0.005 | 0.01 | 0.003 | 0.008 |
Mo-2 | 0.01 | 0.005 | 0.005 | 0.01 | 0.005 | 0.01 | 0.003 | 0.02 |
Application case
Mo1 molybdenum tubes have many applications in various industries where high-temperature resistance, corrosion resistance, and excellent mechanical properties are essential. Here are some examples applications:
Aerospace: Molybdenum tube are used in the aerospace industry for various applications, such as rocket engines and space vehicles. For example, molybdenum tubes are used as structural elements in the Space Shuttle's engines and heat shields.
Semiconductor industry: Molybdenum tube are used in the semiconductor industry to produce high-purity materials, such as silicon crystals used in the production of microchips. Molybdenum tubes are used as a source of high-temperature heating elements in the production of these materials.
Furnace components: Molybdenum tube are used in high-temperature furnace components, such as heating elements and thermocouples. For example, molybdenum tubes are used in the production of sapphire crystals for LED lighting.
Nuclear industry: Molybdenum tube are used in the nuclear industry for various applications, such as fuel rods and control rods. Molybdenum tubes are used because of their excellent resistance to radiation and high-temperature exposure.
Medical industry: Molybdenum tube are used in medical applications, such as radiation shielding and medical imaging. For example, molybdenum tubing are used in X-ray and CT scanning machines.
Hot Tags: molybdenum tube,Molybdenum Tubing
