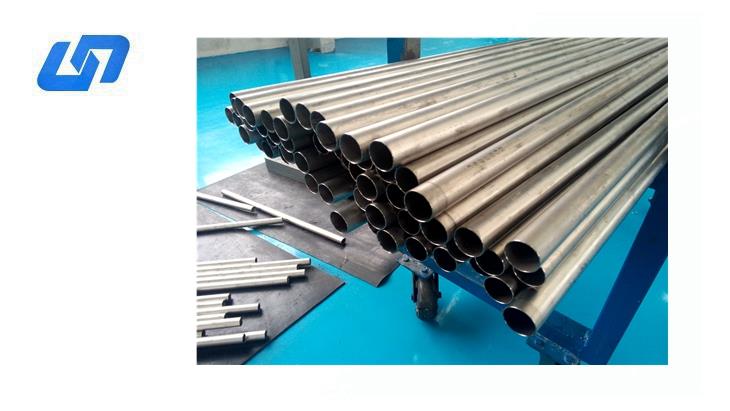

Titanium Tube
Product Description Titanium Tube Information Grade：TA1, TA2, TC4, GR1, GR2, GR5, GR7, GR9, GR12, GR16, GR23 Standard： ASTM B338, B861, B862, F67, F136, ASME SB338, SB861, SB862, AMS, DIN, JIS . Composition： Titanium tube application：Heat exchangers, condensing pipes, pipelines, titanium bicycle...
Product Introduction
Grade：GR1, GR2, GR5, GR7, GR9, GR12, GR16, GR23
Standard： ASTM B338, B861, B862, F67, F136, ASME SB338, SB861, SB862, AMS, DIN, JIS .
Composition：
STANDARD | CHEMICAL COMPOSITION (weight %, max or range) | ||||||||||
ASTM B363 | UNS No | N | C | H | Fe | O | Al | V | Pd | Mo | Ni |
GR 1 | R50250 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | |||||
GR 2 | R50400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | |||||
GR 5 | R56400 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | |||
GR 7 | R52400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.12-0.25 | ||||
GR 12 | R53400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.2-0.4 | 0.6-0.9 | |||
Application：Heat exchangers, condensing pipes, pipelines, titanium bicycle racks, etc.
Treatment process: hot forging, hot rolling, cold rolling, annealing, pickling
Surface quality: The surface is clean and smooth, without peeling, folding, pores, cracks and other defects.
Packaging: According to the specifications of the goods, use woven bags, plastic foam, cardboard boxes, wooden boxes and other packaging that meet the transportation standards to ensure that everything is safe during transportation.
Titanium tube light weight, high strength, excellent mechanical properties. It is widely used in heat exchange equipment, such as tube heat exchanger, coil heat exchanger, serpentine heat exchanger, condenser, evaporator and pipeline. Many in the nuclear industry use titanium tubes as standard for their units.
Weld tube spec.
| Type | Grade | British Measurement inch | Metric Measurement | Standard |
| Welded Tube | GR1, GR2 | OD 0.315" to 4.02"; WT 0.02" to 0.047" | OD 8 to 102mm; | ASTM B338, ASME SB338 |
| Welded Pipe | GR1, GR2, GR7, GR12, etc. | OD 4.02" to 48"; WT 0.083" to 0.5" | OD 102 to 1220mm; WT 2.1 to 12.7mm | ASTM B862, ASME SB862 |
| Type | Grade | British Measurement inch | Metric Measurement | Standard |
| Seamless Tubing | GR1, GR2, GR3, GR5, GR7, GR9, GR12, GR16, GR17 | OD 0.06" to 3.5"; Width 0.016" to 0.315"; Length Max 709" | OD 1.53 to 89mm; WT 0.4 to 8mm; Length max 18000mm | ASTMB338, ASME SB338 |
| Seamless Pipe | GR1, GR2, GR3, GR5, GR7, GR9, GR12, GR16, GR17 | OD 3.5" to 25"; WT 0.12" to 1"; Length Max 709" | OD 89 to 620mm; WT 3 to 25.4mm; Length Max 18000mm | ASTMB338, ASME SB 338, ASTM B861 |
Baoji City Changsheng Titanium Co., Ltd. is mainly engaged in the production and wholesale sales of high-end pure titanium and titanium alloys. The company's processing workshop has a number of senior engineers in the material discipline and senior technicians in production and processing, as well as a number of advanced testing equipment. As an internationally recognized third party, an internationally recognized accreditation body guarantees consistently high-quality materials.
The quality of our company's materials is stable, the prices are reasonable, the supplies are timely, and the sales team is professional and capable, so we can meet the needs of customers accurately and timely, and we have won a good reputation in these industries! And was designated as a manufacturer of supporting products by domestic well-known enterprises (ultrasonic, wave soldering) manufacturers.
In the spirit of survival by quality; development by technology; market by reputation; through first-class products; first-class services, materials have been exported to Jiangsu, Zhejiang, Hong Kong, Taiwan, Korea, the United States, Germany and Singapore Countries and regions.
