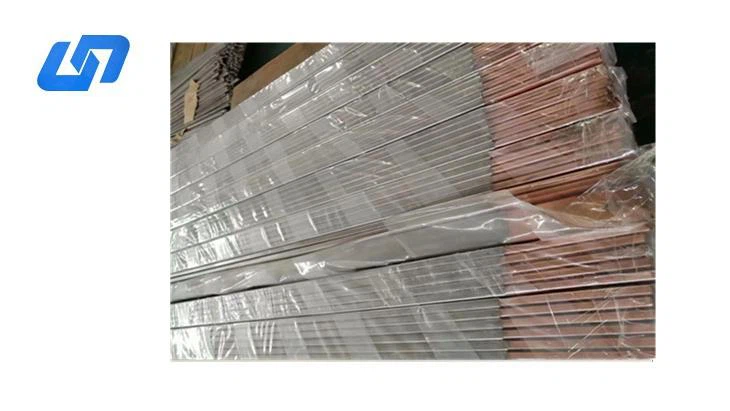

Titanium Clad Copper Rod
titanium clad copper rod is known as there’s a certain thickness titanium layer coated on the copper rod. The thickness of the titanium layer is about 0.8~1.2mm, mainly used for a conductor under strong corrosive conditions.
Product Introduction
The term "titanium clad copper" refers to a metallic material that has been coated on a copper rod with a titanium layer of a certain thickness (typically 1.0-1.2 mm). The metal anode's main component is it. Titanium Clad Copper Rod can be classified as round, flat, square, rectangular titanium-clad copper, and so on based on its cross-sectional geometry.
Copper's excellent electrical conductivity is combined with titanium's superior resistance to corrosion in this composite titanium material. It very well may be utilized as a conduit conveying enormous flows under moderately destructive working circumstances while guaranteeing the consistency of current thickness and dispensing with the contamination of electrolyte brought about by the erosion of copper transmitters.
Hence, titanium clad copper rod has turned into the principal part of the development of metal anode electrolyzers. Since its creation during the 1960s, it has grown quickly in different nations all over the planet.
Titanium clad copper bar is mainly used because of the excellent corrosion resistance cladding metal-titanium and the good electrical conductivity of the core metal-copper. Under strong etch conditions, as a conductor carrying a large current, due to the coating, the protection of the layered metal to copper prevents corrosion of the copper conductor, ensures uniformity of current density, and improves the quality level of the electrolytic product.
Product details
| Color | TITANIUM ORIGINAL COLOR |
| Certificate | ISO9001-2015 |
| Standard | GB/T-8547 2006 |
| Packing | wooden box |
| layer thickness | titanium about 1mm, copper size is as your need |
| Features | excellent abrasion, crush, chemical, and moisture resistance |
| Application | electrolysis industry, electroplating and electrowinning field. |
| Grade | gr1/gr2 titanium, and T2 copper |
Produce
1.Hot extrusion + cold drawing
Using the titanium cast copper ~ titanium copper ingots ~ copper-sheathed titanium copper ingots ~ hot extrusion ~ cold drawing ~ surface treatment~ titanium-titanium clad copper bar
2.Explosive cladding + hot rolling
Assemble the copper rod into the titanium tube ~ scatter medicine ~ explosive cladding ~ hot rolling forming ~ cold drawing forming ~ surface treatment~titanium copper composite rod
