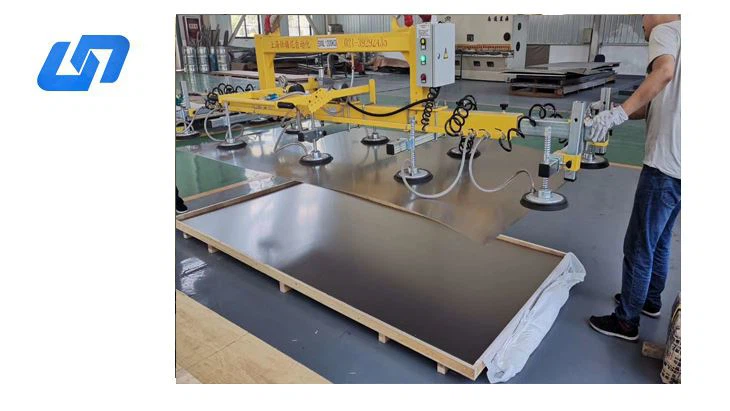

ASTM F136 Titanium sheet

ASTM F136 Titanium plate/sheet
gr5eli medical titanium sheet
6Al-4V eli titanium sheet for medical
Standard:ASTM F136
Grade:gr5 eli Ti-6Al-4V ELI
Application:Surgical implants Titanium alloy
QTY:5KGS

Send Inquiry

Product Introduction

Medical titanium sheets made from Ti-6Al-4V ELI (Extra Low Interstitial) alloy are specifically designed for implant-grade applications. With excellent biocompatibility, strength, and corrosion resistance, they are widely used in surgical implants and medical devices.

Key Features

Excellent biocompatibility (safe for long-term implantation)

High strength-to-weight ratio

Superior fatigue resistance

Outstanding corrosion resistance (body fluids & sterilization environments)

Mechanical properties close to human bone

Material Standard

Alloy: Ti-6Al-4V ELI

Standard: UNS R56401

Compliance: Medical implant-grade specifications

Available Dimensions

Thickness (mm)	Width (mm)	Length (mm)
0.02 – 0.10	50 – 300	Custom
0.10 – 0.30	100 – 500	Custom
0.30 – 3.00	400 – 1000	≤ 3000

Condition & Finish

Condition:

Annealed

Cold-worked

Surface Finish Options:

Descaled / Pickled

Sandblasted

Polished / Mirror polished

Chemical milling / machining

Anodizing / Vacuum coating

Chemical Composition (Ti-6Al-4V ELI)

Element	Ti	Al	V	Fe	O	C	N	H
Content (%)	Balance	5.5 – 6.5	3.5 – 4.5	≤ 0.25	≤ 0.13	≤ 0.08	≤ 0.05	≤ 0.012

(Tolerances per AMS 2249)

Mechanical Properties (Annealed)

Thickness Range	Tensile Strength	Yield Strength	Elongation
≤ 4.75 mm	≥ 860 MPa	≥ 795 MPa	≥ 10%
4.75 – 44.45 mm	≥ 860 MPa	≥ 795 MPa	≥ 10%
44.45 – 101.6 mm	≥ 825 MPa	≥ 760 MPa	≥ 8%
