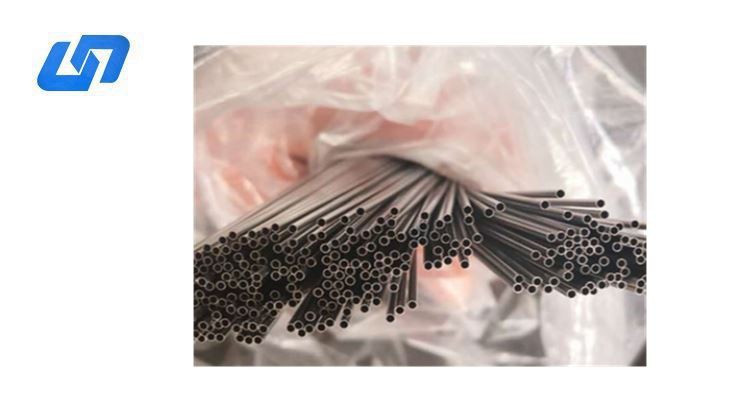

Titanium Gr5 Tube OD 2.0 WT0.5/0.45mm
Gr5 titanium capillary tube manufacturer.
Materials: Ti-6Al-4V, TC4 titanium alloy tubes.
Size: OD 2.0 *WT 0.5/0.45 * L100-200mm
OD 1.6 *WT 0.3 * L100-200mm
Qty: 100 000 pcs
Product Introduction
Titanium Gr5 capillary tubes are ultra-precise, high-strength tubes engineered for demanding environments where lightweight structure, corrosion resistance, and mechanical reliability are critical. Manufactured in accordance with ASTM B861, these tubes are widely used across medical, aerospace, automotive, and industrial sectors.
Material Options
Gr5 (Ti-6Al-4V): High strength, excellent fatigue resistance
Gr23 (Ti-6Al-4V ELI): Ultra-low interstitial content for superior biocompatibility and medical-grade performance
Key Advantages
High strength-to-weight ratio
Excellent corrosion resistance in aggressive environments
Superior fatigue and impact resistance
Precision capillary-grade dimensional control
Biocompatible (Gr23 suitable for implants)
Stable performance under high stress and temperature variation
Standard
ASTM B861 (Seamless Titanium Tubes)
Dimensional Range
Outer Diameter (OD) | Wall Thickness (WT) | Length | Application Area |
Ø 1 – 60 mm | 0.2 – 5 mm | 10 – 6000 mm | Electronics, medical devices, implants |
Ø 9.4 – 15.24 mm | 0.2 – 0.3 mm | 500 – 6000 mm | Sports equipment (e.g., golf clubs) |
Ø 10 – 13 mm | 3.5 – 5.7 mm | 72 – 1500 mm | Automotive components |
Ø 16 – 40 mm | 0.9 – 1 mm | 500 – 6000 mm | Bicycle frames, structural parts |
Ø 38 – 100 mm | 3 – 12 mm | 3000 – 6000 mm | Oil drilling, geological drilling pipes |
Applications
Medical & Healthcare: Surgical tools, implants, precision tubing systems
Electronics Industry: High-precision structural and conductive components
Automotive Industry: Lightweight high-strength structural parts
Sports Equipment: Golf clubs and performance gear
Energy & Drilling: Oil drilling pipes, geological exploration systems
Industrial Engineering: High-performance fluid and structural systems
Manufacturing Capability & Development
In 2015, our company invested 15 million RMB in the development of a dedicated Titanium Gr5 tube production line, including imported German manufacturing equipment and precision mandrel tooling systems.
R&D and process development: 3 years
Pilot production completed: 2018
Full production capacity achieved: 2020 (75 tons/year)
The production line supports high-end applications across:
Military engineering
Medical implants and devices
Automotive lightweight systems
Petroleum and energy industries
Performance Summary
Titanium Gr5 capillary tubes combine precision manufacturing, structural strength, and extreme environment resistance, making them a critical material for next-generation engineering applications.
