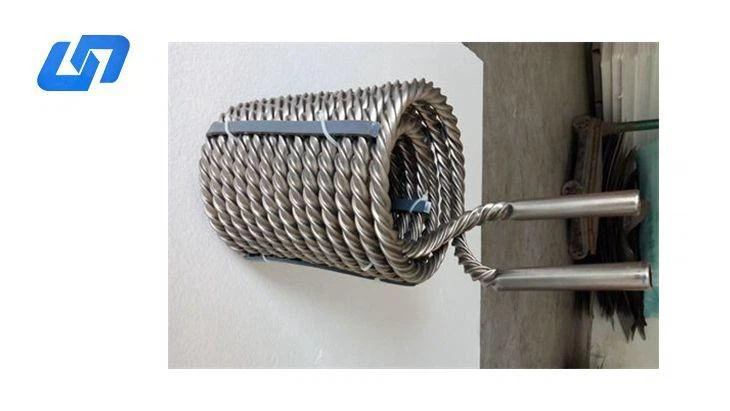

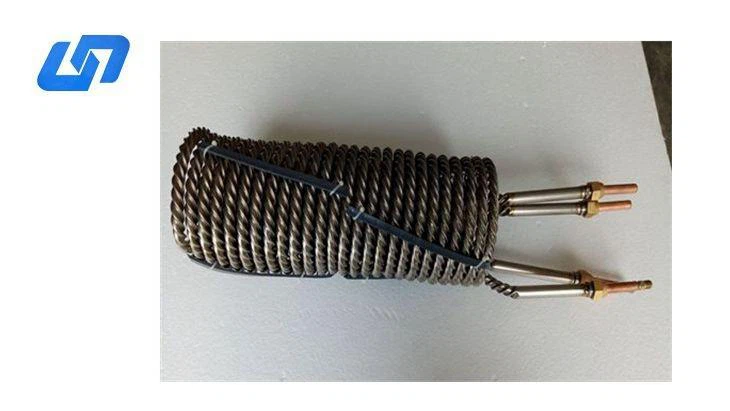

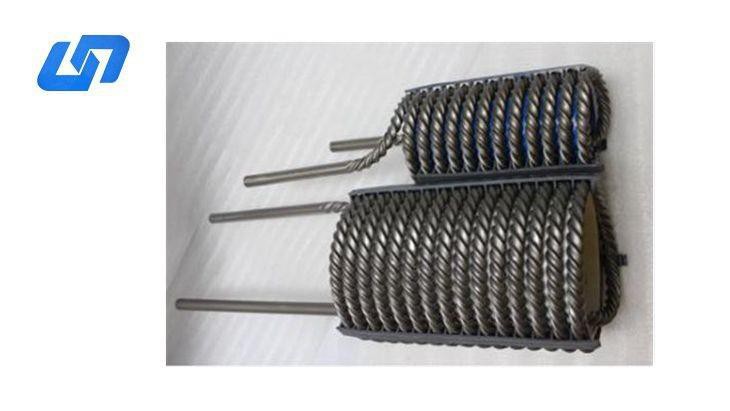

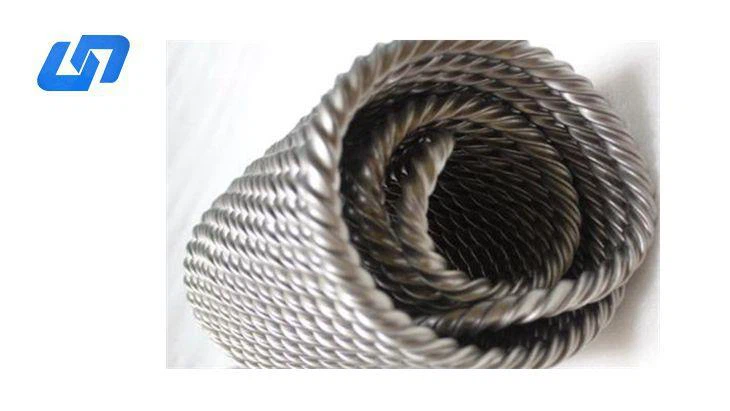

Titanium Twist Corrugated Spiral coil Tube
titanium Spiral pipe
Inside: Gr1 welded titanium
Titanium tube material: gr1
Titanium tube diameter :12.7mm----30mm(normal use)
Titanium tube thickness :0.55mm----3.0mm(normal use)
Outside shell: Pvc case
MOQ:1PCS
Product Introduction
Specification
Titanium twist tube which has strong anti-corrosion,the water pressure is about 3.5Mpa
this product is used for swimming pool,fish pool aquarium and so on.
Titanium corrugated coil for swimming pool spa heat exchanger. Our swimming pool heat exchangers are designed by our special innovative tube designs,spiral twisted corrugation on the tubing surface,which were engineered to maximize the use of engine heat or boiler energy,thus increasing the overall thermal efficiency of the system.
These swimming pool models are perfect solution for pool,spa,and hot tub.
Fully constructed with pressurized shell and spiral corrugated inner tube.this ensures high velocities inside the unit making swimming pool heat exchanger a very reliable,efficient and cost effective way to tansfer heat indirectly between any hot water circuit and any pool or spa circuit,besides other application.
We have a large range of heat exchangers well suited from 55,00 to up to 5,000,000BTU/H
Product detail | |
inside: Gr1seamless titanium coil | |
Material | seamless tube |
Diameter | 12.7mm----30mm(normal use) |
Thickness | 0.55mm----3.0mm(normal use) |
outside shell: PVC case | |
PVC cover material | enviromental protection |
PVC tube diameter | OD110mm----OD400mm |
PVC tube thickness | 2.7mm----15.3mm |
connection | |
gas inlet and outlet | titanium thread and copper nut/tube |
water inlet and outlet | plastic piston |
testing/others | |
water pressure | 0.25----1.0Mpa(2.5---10bar) |
gas pressure | 3.5Mpa |
PVC temperature | ≤45°C |
shell leakage | no |
tube leakage | no |
pack | 0.6mm thick gray sponge |
corrosive or not | anti-corrosion |
use | pool /heat pump/ air conditioner/chillar etc |
