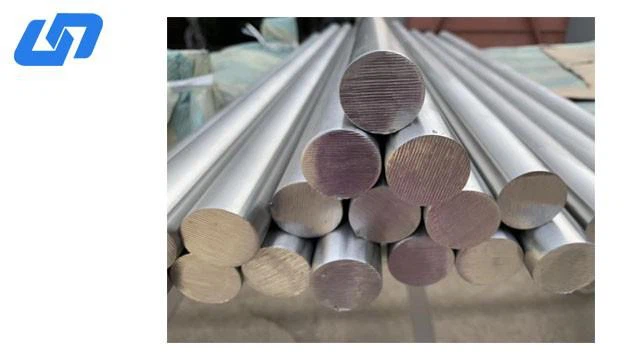

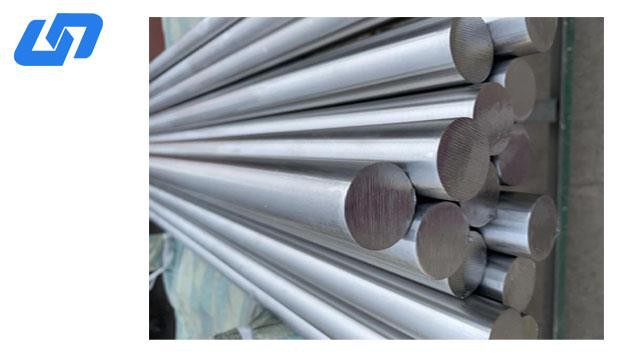

TC1 titanium bar aerospace grade
TC1 titanium aerosapce grade chemical composition is Ti2Al1.5Mn. It is most suitable for the manufacture of parts with complex shape stamping and welding, and has been widely used in the aerospace industry and civil industry.
Product Introduction
TC1 is a low-alloy α-type titanium alloy (Ti-2Al-1.5Mn) designed for applications requiring a balance of strength, formability, weldability, and thermal stability.
Aluminum (Al ~2%) acts as an α-phase stabilizer, providing solid solution strengthening
Manganese (Mn ~1.5%) acts as a β stabilizer, improving plasticity and workability
The alloy is classified as a near-α titanium alloy with excellent processing performance and slightly higher strength than commercially pure titanium.
Key Characteristics
Slightly higher strength than industrial pure titanium
Excellent hot and cold processing plasticity
Good weldability
Stable performance at elevated temperatures
Long-term service capability up to 350°C
Thermal Performance
Recommended Working Temperature: ≤ 350°C
Service Life:
350°C → up to 2,000 hours
300°C → up to 30,000 hours
Phase Transformation Temperature: 920 ± 20°C
Physical & Mechanical Properties
Density: 4.55 g/cm³
Elastic Modulus (RT): 127 GPa
Hardness: HBS 210–250
Chemical Composition (wt%)
Element | Al | Mn | Fe | C | N | H | O | Ti |
Content | 1.0 – 2.5% | 0.7 – 2.0% | ≤ 0.30% | ≤ 0.08% | ≤ 0.05% | ≤ 0.012% | ≤ 0.15% | Balance |
Mechanical Properties (Typical Range)
Tensile Strength (Rm): 585 – 735 MPa
Yield Strength (Rp0.2): ≥ 460 MPa
Elongation: ≥ 15–25% (depending on product form)
Fracture Toughness: Good impact resistance (aK ≥ 44 J/cm²)
Product Forms
Plates
Sheets / Strips
Bars / Rods
Forgings
Applications
Aerospace Industry (Primary Application)
TC1 titanium alloy is widely used in aircraft and aero-engine structures, especially for components requiring good formability and moderate strength.
Typical applications include:
Aircraft fuselage rear sections
Skin panels and outer wall structures
Engine housings
Heat shields
Landing gear auxiliary components
In some fighter aircraft applications, TC1 usage can reach ~230 kg per unit.
Engine Applications
Compressor and turbine housings
Heat protection components
Non-critical structural engine parts
Civil & Industrial Applications
Automotive silencers
Structural frames
Suspension hangers
Lightweight structural components
Advantages in Aerospace Design
Lightweight structure with high strength
Excellent fatigue and fracture resistance
Good corrosion resistance in atmospheric and marine environments
Reliable performance under thermal cycling conditions
Summary
TC1 titanium alloy is a highly workable near-α titanium material that combines good strength, excellent plasticity, weldability, and thermal stability, making it especially suitable for aerospace structures and industrial components requiring complex forming and long service life at moderate temperatures.
