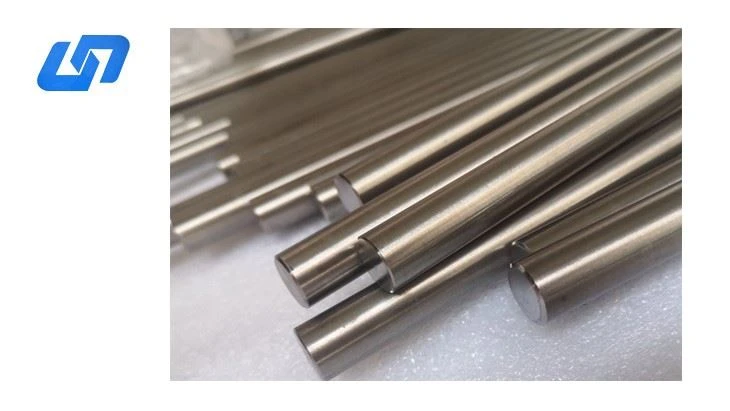

Titanium Round Rod
gr7 titanium including 0.12~0.25% palladium, this titanium material is more resistant to crevice corrosion than commercial pure titanium.
Product Introduction
Grade 7 titanium (Ti–0.2Pd) is an alpha titanium alloy known for its excellent corrosion resistance, particularly in mineral acids and strong brines. It exhibits physical and mechanical properties equivalent to Grade 2 titanium, with a small addition of 0.12–0.25% palladium (Pd) to enhance resistance in mildly reducing and fluctuating environments.
At room temperature, it remains a corrosion-resistant alpha phase alloy. It transforms to the beta phase at 913 °C, and returns to the alpha phase upon cooling at 890 °C.
Specifications
Standard | ASTM B348 / ASME SB348 |
Size Range | Diameter: 6.0 – 200 mm; Length: 1000 – 6000 mm |
Surface | Hot rolled & pickled / Cold rolled & polished |
Shape | Round, Square, Hexagonal |
Finish | Black or Polished |
Features & Advantages
Equivalent strength and ductility to Grade 2 titanium
Enhanced corrosion resistance due to 0.2% Pd addition
Excellent weldability and fabrication characteristics
High strength-to-weight ratio
Superior durability in acidic and brine-rich environments
Suitable for custom cutting and machined billets
Applications
Aerospace Industry
Shafts, bolts, fasteners, and other lightweight structural components
Chemical Processing Industry
Heat exchangers, tanks, reactors, piping systems, and fittings
Ideal for use in environments with strong acids, chlorides, or brines
Weldability
No preheat or post-weld heat treatment required.
Welding surfaces must be clean and free of grease, oil, dirt, and pencil marks.
Cleaning methods:
Abrasive cleaning, solvent cleaning, or pickling (nitric + hydrofluoric acid).
Use a trailing gas shield with a low hydrogen, oxygen, and nitrogen content to prevent oxidation and embrittlement.
Recommended filler metal: AWS A5.16 ERTi-7
Production Capability
Parameter | Detail |
Production Area | 5100 m² |
Key Equipment | 650 Rolling Machine, 150 mm Straightening Machine, Vacuum Annealing Furnace, Peeler, Metalloscope, Infrared Thermometer |
Monthly Output | 400 – 600 tons |
CNC Processing | Over 2 million billets annually, ensuring precise and rapid cutting without surface marking or deformation |
Services
Custom cutting to exact lengths or billet sizes
Fast, precise, and clean rod blanking using high-volume CNC equipment
Supply of small quantities, random sizes, and special-grade titanium on request
In-stock diameters: 3 mm – 80 mm
Summary
Grade 7 Ti–0.2Pd Titanium Round Rods combine the formability and strength of commercially pure titanium with the corrosion resistance of palladium. Their superior durability, weldability, and chemical stability make them ideal for high-demand applications in aerospace, chemical processing, and marine industries.
